PALLET CONVEYOR ROLLERS

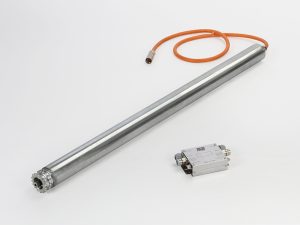

Pallet Conveyor Rollers – Heavy-Duty Motor Driven Rollers

Our pallet conveyor motor-driven rollers are designed to move pallets and other heavy loads, typically in end-of-line material handling areas. This motorized roller design enables efficient and reliable automation for conveying, sorting, and warehousing operations.

Built to withstand high loads and strong impacts, these heavy-duty motor rollers deliver high power and can transport payloads of up to 1500 kg. The series includes two large-diameter models that provide excellent load support and help reduce the risk of roller deflection. Pallet conveyor rollers are ideal for packaging, palletizing, delivery conveying, storage, and production, as well as end stations such as final assembly or inspection points.

A complete solution is available with the perfectly matched DMR PC brushless servo drive, engineered for maximum performance and reliability while providing the high-level control and precision required for demanding applications.

Category:

Key Characteristics (Pallet Conveyor Motor Driven Rollers)

  • External diameter: 89 mm and 70 mm
  • High-density brushless motor roller: 400 W
  • Power supply: 48 VDC and 400 VAC
  • 3-stage planetary gearbox
  • Ø89 model: lifetime-lubricated planetary gearbox, conveyor speed 16.2 m/min (0.27 m/s)
  • Ø70 model: lifetime-lubricated planetary gearbox, conveyor speed 22.2 m/min (0.37 m/s)
  • Protection rating: IP54
  • Insulation class: Class F
  • Max payload: up to 1500 kg
  • Optimized match with the tailored DMR PC brushless servo drive for flexible and precise motion control in end-of-line applications.
